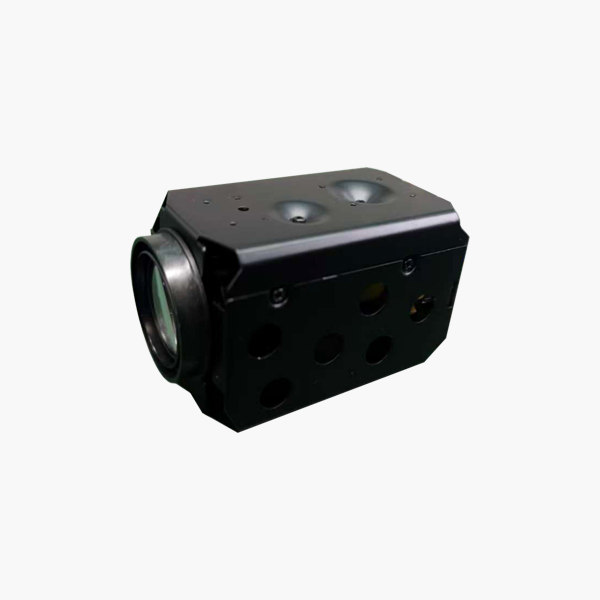

2mp 30x zoom Hdtvi, HDCV, AHD, CVBS 4 ma 1 ma 1 i ka helu Modat Caming Module
|
Hōʻailona |
SG - ZCM2030A |
|
|
Segior |
Kiʻi sensor |
1/28 "Sony Imx307 CMOS |
|
ʻO nā pikika kūpono |
Kokoke. 2.13 megapixel |
|
|
Nā Lens |
Ka lōʻihi |
4.7mm ~ 141mm, 30x optical zoom |
|
Aiputure |
F1.5 ~ F4.0 |
|
|
Mahina mālama |
H: 60.5 ° ~ 2.3 ° |
|
|
Hoʻopili kokoke i kahi mamao |
2m ~ 3m (ākea ~ tele) |
|
|
Zom |
Kokoke. 4s (optical ākea ~ tele) |
|
|
Wikiō |
Kope |
HD - TVI, HDCV, AHD, CVBS 4 ma 1 (OSD MESS TERSS MAHI) |
|
Kūpono |
IVP - P Composite Output |
|
|
HOOLAHA |
S / cvi / ahd: 25/4fps @ 2mps (1920 × 1080) CBV: 700tvl |
|
|
Papa Pūnaewele |
I / OFF (11 * 20 mau hua'ōlelo) |
|
|
ʻO ka hoʻomālamalama liʻiliʻi |
Kāleka: 0.01Lax / F1.5; B / W: 0.001lux / F1.5 |
|
|
Lā / pō |
ICR (Auto, kala,ʻeleʻele,ʻeleʻele, i waho) |
|
|
S / n ratio |
≥50DB |
|
|
ʻO ka hōʻemiʻo 2d haʻalulu |
Kākoʻo |
|
|
3 Hoʻomaʻamaʻaʻiaʻo 3D |
Kākoʻo (kiʻekiʻe / waena / haʻahaʻa) |
|
|
Nā Kūlana Kūlana |
Auto, Mone, Semi Auto, |
|
|
Mode exposure |
Auto, MANU |
|
|
Shotter wikiwiki |
Auto, 1/50 (1/60) ~ 1 / 100,000s |
|
|
Pāpeku kū |
X2 |
|
|
Ke kaulike keʻokeʻo |
Auto, indor, Outdoor, Auto Track, hoʻokahi pana |
|
|
Blc o blc |
Ma luna |
|
|
Loaʻa ka hoʻokele |
Auto, MANU |
|
|
ʻO ke kikowaenaʻo Masa |
Ma / Off, Max. 8 mau wahi |
|
|
ʻO wehewehe |
Hoʻoponopono |
|
|
Hoʻohālikelike |
Hoʻoponopono |
|
|
Doog |
Kākoʻo |
|
|
Aniani |
Ma / Off, huli, flip |
|
|
Kiʻi kelehueʻole |
Ma luna |
|
|
Interface |
6Pin, 2pin 1.25mm Terminal kumu, me ka papa pā |
|
|
Ke kamaʻilioʻana me ke kamaʻilio |
Sony Visca, Pelco D, UTC (9.6KBPS 10bit) |
|
|
Nā kūlana hana |
- 30 ° C ~ + 60 ° C / 20% a 80% RH |
|
|
Nā kūlana mālama |
- (° C ~ 70 ° C / 20% a 95% RH |
|
|
Lako ikehu |
DC 12V / 90MA ± 6MA (DC RAX: 9 ~ 16V) |
|
|
Mana Manaʻo |
Max. 4w |
|
|

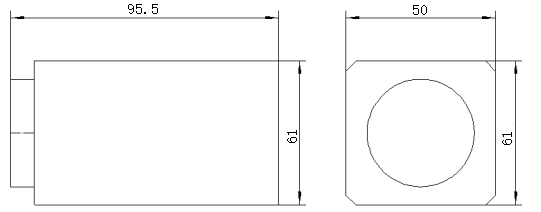

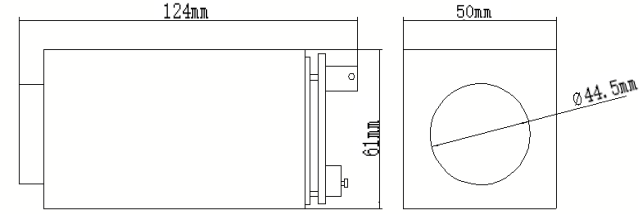

Nā'āpana (l * w * h) |
95.5mm * 50mm * 61mm (124mm * 51mm * 51mm * 56mm * 56mm me nā papa pahu) |
|
|
Ke kaumaha |
250g (268g me ka papa pahu) |
|
