1280x1024/640x512 Pūnaewele a me Digital Dual Output SWIR Camera Module
Hōʻike
Hoʻohālike | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
ʻIkepili | ʻIke kiʻi | 1/2″ SONY InGaAs Global Shutter SWIR Sensor IMX990 | 1/4″ SONY InGaAs Global Shutter SWIR Sensor IMX991 |
| Nā Pika maikaʻi | Ma kahi. 1.34MP | Ma kahi. 0.34MP | |
| Nui Pika | 5μm | ||
Lens | Ka lōʻihi o ka nalu pane | 1000~1700nm | |
| ICR | Kākoʻo i 2 mau ʻano: ʻAi ākea: 1000~1700nm Narrow band: 1450~1700nm | ||
| Ka lōʻihi | 17mm~510mm, 30x Optical Zoom | ||
| Aperture | F2.8~F5.5 | ||
| Kahua ʻike | H: 21.3°~0.71°, V: 17.1°~0.57°, D: 27.1°~0.92° | H: 11.6°~0.37°, V: 9.3°~0.3°, D: 14.8°~0.47° | |
| Hoʻopili i ka mamao kiko | 1m~10m (Wide~Tele) | ||
| Māmā wikiwiki | Ma kahi. 7s (Optical Wide~Tele) | ||
wikiō | Hoʻopiʻi | H.265/H.264/H.264H/MJPEG | |
| Olelo Hooholo | 25/30/50/60fps@1280×1024 | 25/30/50/60fps@640×512 | |
| Pākuʻi Bit Video | 32kbps~16Mbps | ||
| Leo | AAC / MP2L2 | ||
| LVDS wikiō | 25/30/50/60fps@2MP (1920×1080) | ||
Pūnaewele | Waihona | Kāleka TF (256 GB), FTP, NAS | |
| Pūnaehana Pūnaewele | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Kākoʻo | ||
| Hoʻonui Paʻa Paa Paa (LVDS) | Hiki ke hoʻomaikaʻi wale i ka firmware ma o ke awa Network | ||
| Nā Hanana Nui | Nani, Hoʻopili, Kāleka SD, Pūnaewele | ||
| IVS | Tripwire, ʻIke Pa Kea, Hoʻokomo, Haʻalele ʻia, wikiwiki-Neʻe, ʻike kaʻa, manaʻo hōʻuluʻulu lehulehu, mea nalo, ʻike Loitering. | ||
| Hoemi Halulu | 2D/3D | ||
| ʻAno Hōʻike | Manual, Auto, Aperture Priority, Shutter Priority | ||
| Pākuʻi Hōʻike | Kākoʻo | ||
| Ka māmā pani | 1/1~1/30000s | ||
| Kūlana Kūlana | Auto/Manual/Semi Auto | ||
| Elele Defog | Kākoʻo | ||
| Hoemi Hae Wela | Kākoʻo | ||
| Kahuli | Kākoʻo | ||
| EIS | Kākoʻo | ||
| Hoʻonui kikohoʻe | 16x | ||
| Hoomalu Kuwaho | TTL | ||
| Ikepili | 4pin Ethernet awa, 6pin serial & mana awa, 5pin Audio port.30pin LVDS | ||
| Kūkākūkā kamaʻilio | SONY VISCA, Pleco D/P | ||
| Nā Kūlana Hana | -30~+60°C/20%~80%RH | ||
| Nā Kūlana Waihona | -40~+70°C/20%~95%RH | ||
| Lako ikehu | DC 12V | ||
| Hoʻohana mana (TBD) | Awelika: 6W; Kaumaha: 11W | ||

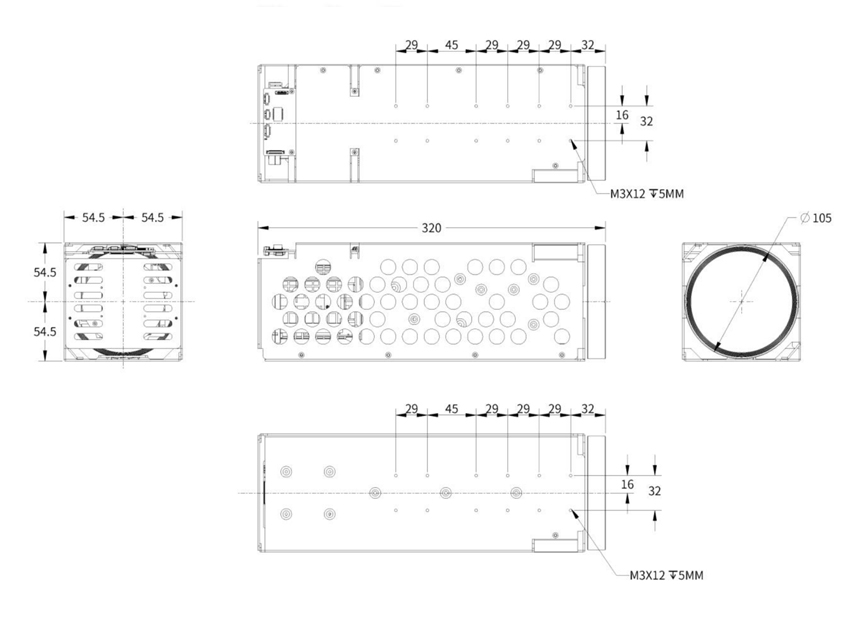

| Ana (L*W*H) | Ma kahi. 320mm * 109mm * 109mm | ||
| Kaumaha | 3.1kg | ||
ʻIkepili Pūnaewele
| ʻAno | Helu PIN | PIN inoa | wehewehe |
| J2_4pin Ethernet Interface | 1 | ETHRX- | Adaptive Ethernet awa, Internet RX- |
| 2 | ETHRX+ | Adaptive Ethernet awa, Internet RX+ | |
| 3 | ETHTX- | Adaptive Ethernet awa, Internet TX- | |
| 4 | ETHTX+ | Adaptive Ethernet awa, Internet TX+ | |
| J3_6pin Mana & UART Interface | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | TTL Level 3.3V, Pelco Protocol | |
| 4 | TXD1 | TTL Level 3.3V, Pelco Protocol | |
| 5 | RXD0 | TTL Level 3.3V, Visca Protocol | |
| 6 | TXD0 | TTL Level 3.3V, Visca Protocol | |
| J1_5pin Audio Interface | 1 | AUDIO_OUT | Leo waho (Line Out) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Audio In (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
LVDS Interface
| Awa | Helu | PIN inoa | wehewehe |
| J4_30pin LVDS Interface (E like me SONY 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | Puke DC (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL pae 3.3V, VISCA protocol, like me TXD0 ma J3_6pin Port. Akā ʻaʻole hiki ke hoʻohui i ka manawa like. | |
| 19 | UART1_RX | TTL pae 3.3V, VISCA protocol, like me RXD0 ma J3_6pin Port. Akā ʻaʻole hiki ke hoʻohui i ka manawa like. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
